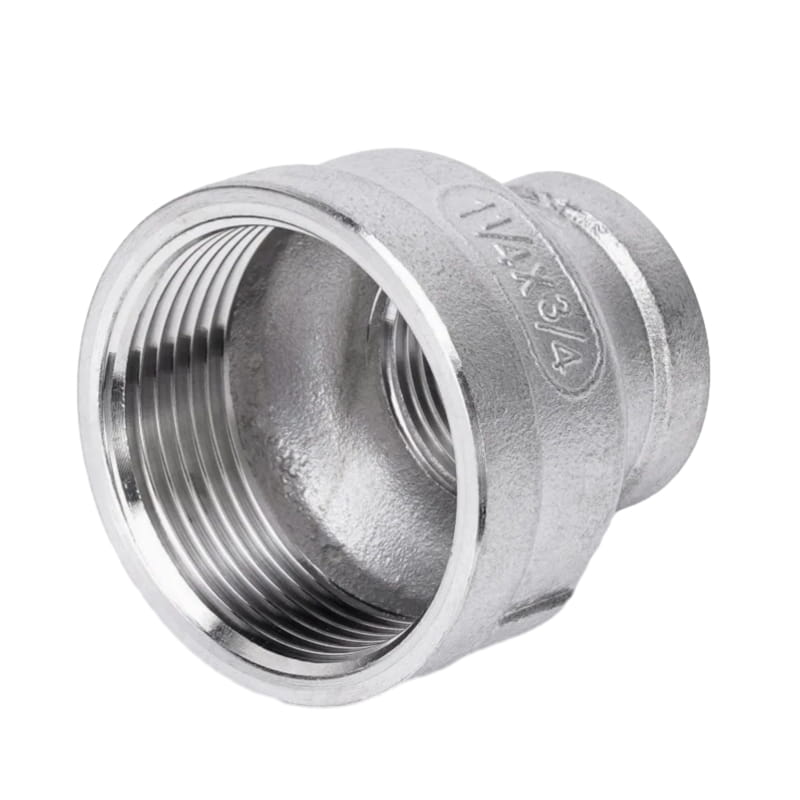

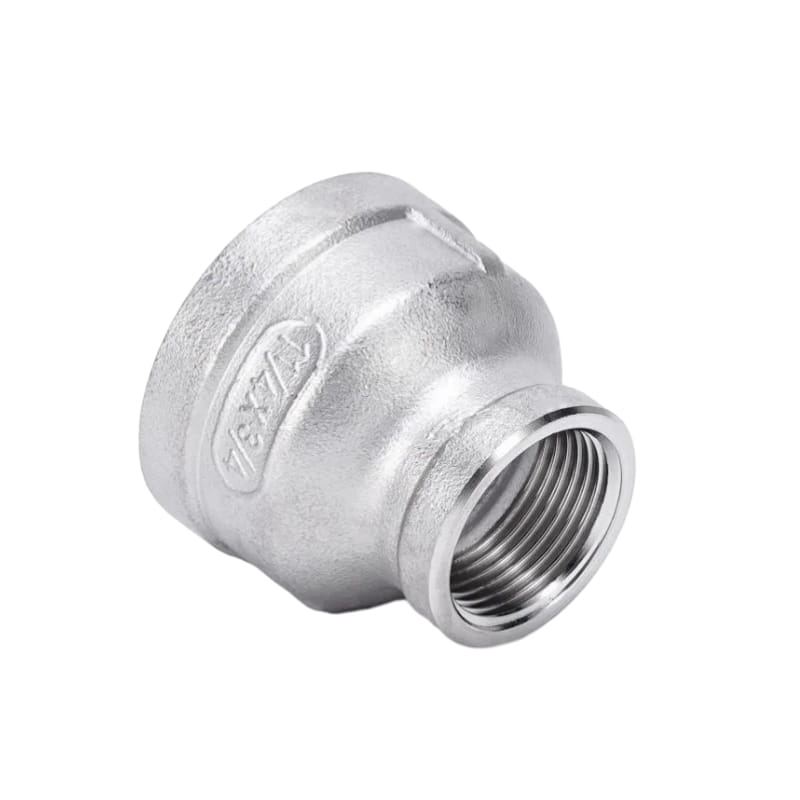

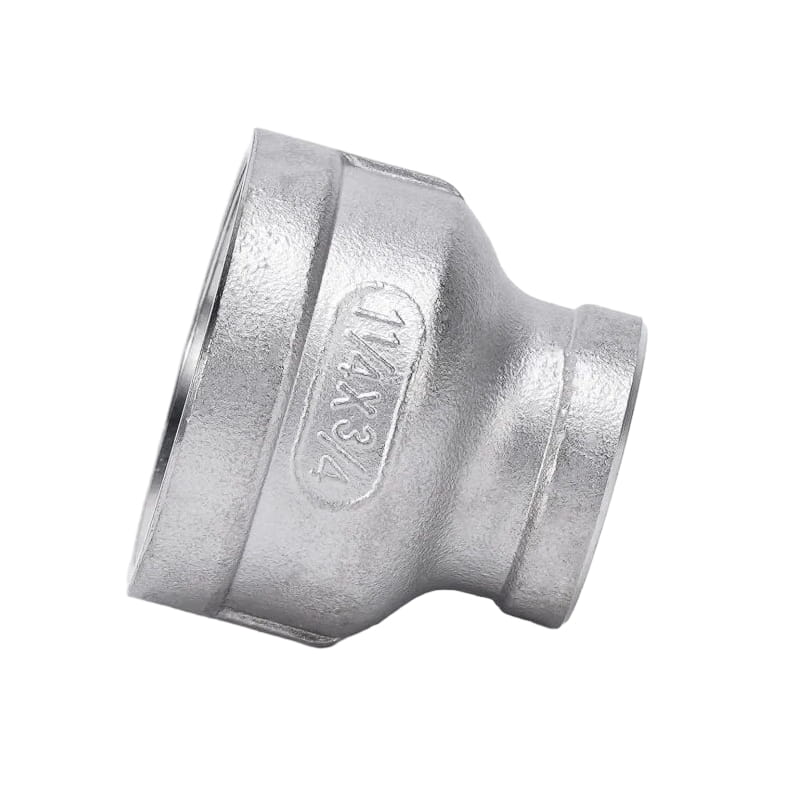

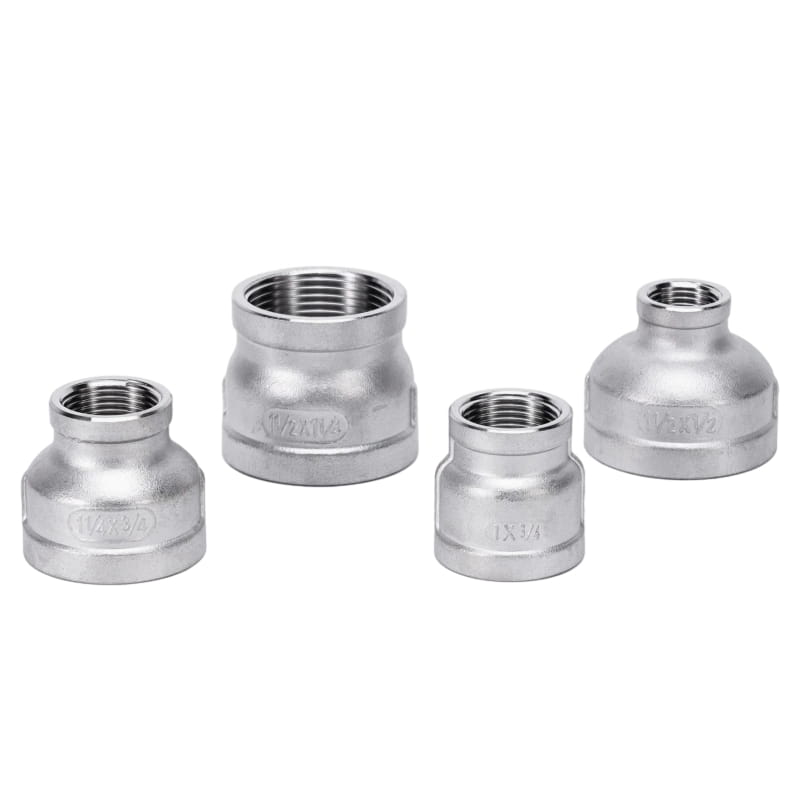

Loceng keluli tahan karat mengurangkan gandingan menghubungkan dua bahagian diameter yang berbeza

Standard

ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313

Bahan

SS304, SS316 (CF8, CF8M), WCB, dll.

Permukaan

Minyak antirust, warna primer

Jenis

Mesin cnc atau mesin bubut

saiz

¼ "-4"

Masa penghantaran

Dalam masa 5-30 hari setelah menerima prabayar

Pembungkusan

Plywood Pallet/Case

Permohonan

Petroleum, kimia, kuasa, gas, air, linepipe, penukar haba, pembinaan kapal, pembinaan, saluran paip tekanan tinggi & rendah, dll.

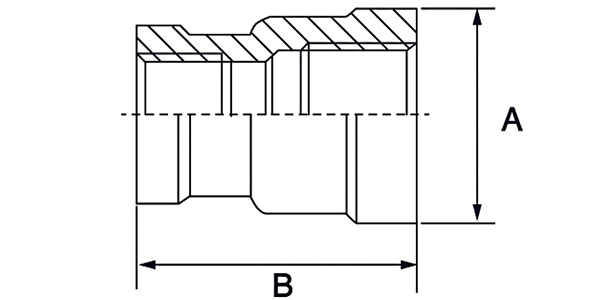

Saiz

A

B

Saiz

A

B

Saiz

A

B

1/4 × 1/8

18

22.8

1 1/4 × 3/8

48

29.5

2 × 1 1/4

66

40

3/8 × 1/8

22

24.3

1 1/4 × 1/2

48

32

2 × 1 1/2

66

47.8

3/8 × 1/4

22

27.5

1 1/4 × 3/4

48

33

2 1/2 × 1

80.2

42

1/2 × 1/8

26

21

1 1/4 × 1

48

42

2 1/2 × 1 1/4

81.2

44

1/2 × 1/4

26

25

1 1/2 × 1/8

54

26.5

2 1/2 × 1 1/2

81.2

45

1/2 × 3/8

26

28

1 1/2 × 1/4

54

29

2 1/2 × 2

81.2

47

3/4 × 1/8

32

22

1 1/2 × 3/8

54

30

3 × 1 1/4

98

47

3/4 × 1/4

32

24

1 1/2 × 1/2

54

32

3 × 1 1/2

98

48

3/4 × 3/8

32

24.5

1 1/2 × 3/4

54

33

3 × 2

98

50

3/4 × 1/2

32

32.5

1 1/2 × 1

54

34.5

3 × 2 1/2

98

51

1 × 1/4

39

26.5

1 1/2 × 1 1/4

54

44.3

4 × 1 1/2

124

54

1 × 3/8

39

27

2 × 1/4

66

32.5

4 × 2

124

56

1 × 1/2

39

29.5

2 × 3/8

66

33

4 × 2 1/2

124

57

1 × 3/4

39

36.4

2 × 1/2

66

35.5

4 × 3

124

60

1 1/4 × 1/8

48

26.5

2 × 3/4

66

36.5

1 1/4 × 1/4

48

29

2 × 1

66

38

Saiz Thread (IN)

Dn

Benang luaran

Benang dalaman

1/8

6

9.8 ± 0.2

8.8 ± 0.2

1/4

8

12.5 ± 0.3

11.5 ± 0.3

3/8

10

16.2 ± 0.3

15.3 ± 0.3

1/2

15

20.3 ± 0.3

19.3 ± 0.3

3/4

20

25.7 ± 0.5

24 ± 0.5

1

25

32.5 ± 0.5

30.5 ± 0.5

1 1/4

32

41.5 ± 0.5

39.5 ± 0.5

1 1/2

40

47.8 ± 0.5

46.3 ± 0.5

2

50

59.6 ± 0.5

56.6 ± 0.5

2 1/2

65

74.5 ± 0.5

72.5 ± 0.5

3

80

87.5 ± 0.5

84.5 ± 0.5

4

100

112.5 ± 0.5

110.5 ± 0.5
