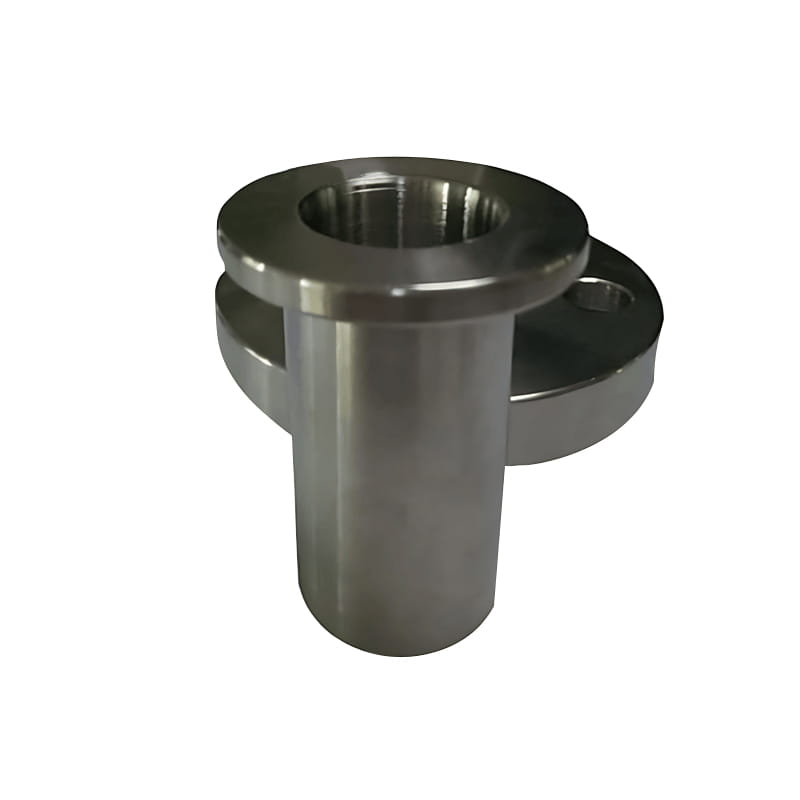

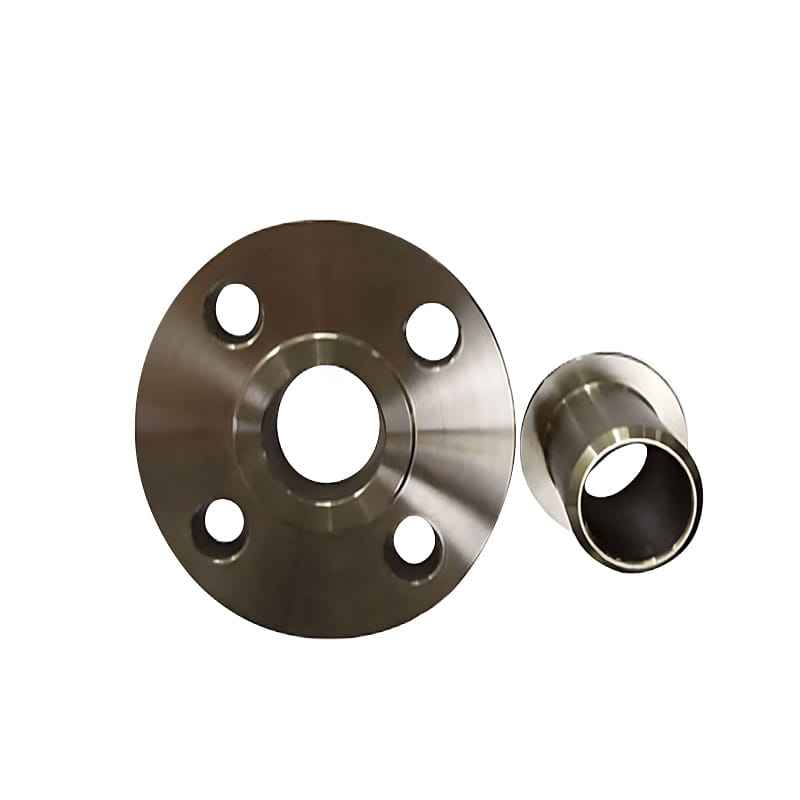

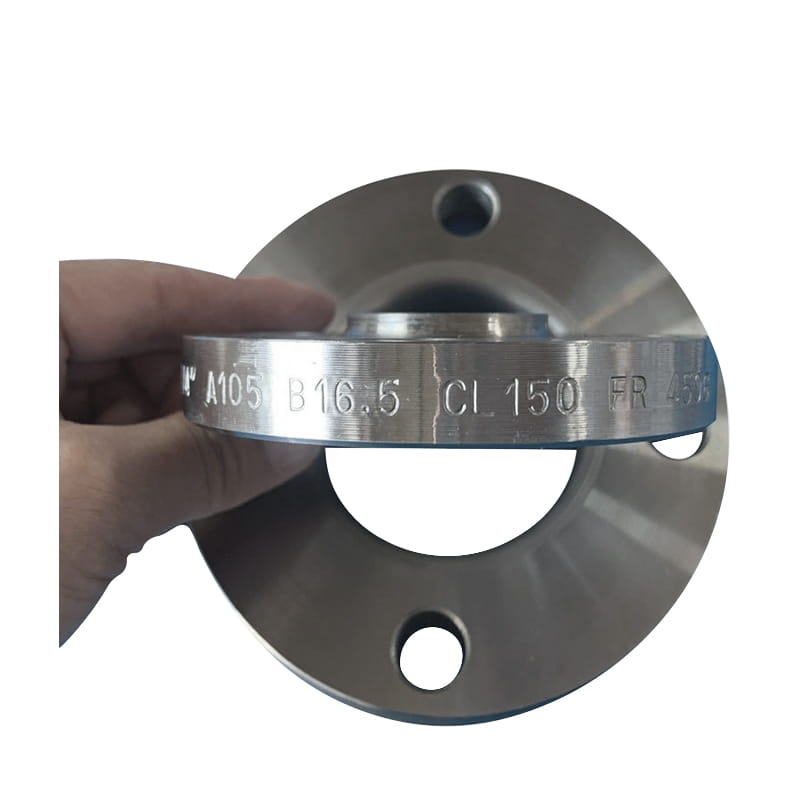

Satu flange bersama lap adalah perhimpunan dua segmen, dengan hujung stub yang mempunyai flange cincin lap-bersama meletakkannya. Hujung stub kemudiannya dikimpal ke paip, dan cincin bebibir boleh dihidupkan untuk diselaraskan dengan bebibir kawin.

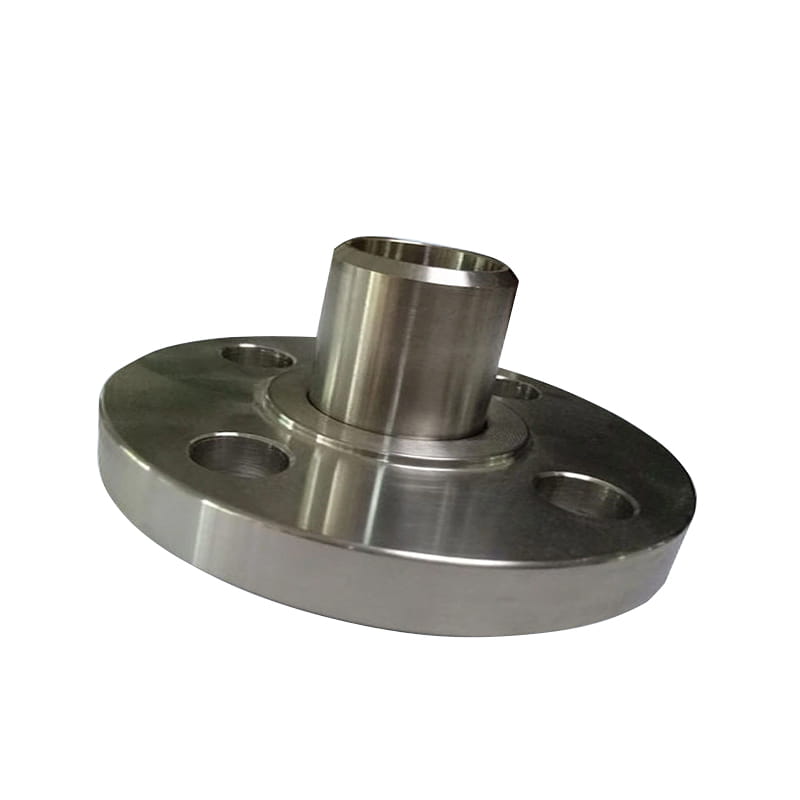

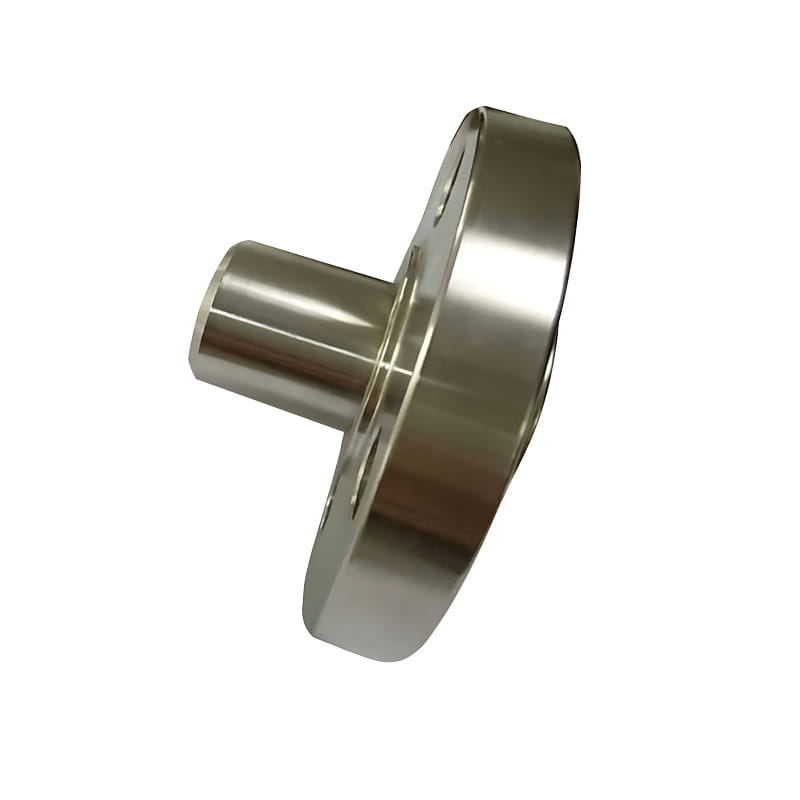

Hujung stub boleh dilihat sebagai panjang lengan paip dengan satu punggung akhir yang dikimpal dan ujung yang lain meletup pada sudut kanan ke paksi paip. Flange bersama lap dan hujung stub mengarang sambungan bersama pusingan dua keping.
Bebibir ini hampir sama dengan "flange slip" kecuali radius di persimpangan muka bebibir dan melahirkan untuk menampung bahagian flanged hujung stub. Keupayaan memegang tekanan mereka sedikit lebih baik daripada "slip on flange". Walau bagaimanapun, kehidupan keletihan hanya sepersepuluh "bebibir leher kimpalan".
Lap bersama bebibir tergelincir di atas paip, dan tidak dikimpal atau sebaliknya diikat kepadanya. Mereka adalah sejenis perhimpunan bebibir yang biasa digunakan dalam sistem tekanan rendah atau aplikasi di mana pembongkaran kerap diperlukan.
Pengenalan
| Standard | ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820 |
| Bahan | Keluli tahan karat, keluli karbon, keluli aloi, nikel cupro (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nikel (200/201) Keluli Dupleks, SS 904L, Titanium (1 & 2) dan lain -lain. |
| Permukaan | Minyak anti-rust, lukisan (hitam, kuning), galvanizing, salutan kuasa |
| Jenis | Penempaan, pemprosesan CNC |
| saiz | ½ inci - 24 inci |
| Masa penghantaran | Dalam masa 5-30 hari setelah menerima prabayar |
| Pembungkusan | Pallet papan lapis, palet kayu, kes kayu, dll. |
| Permohonan | Kuasa elektrik, medan minyak, pembinaan kapal, luar pesisir, sistem air, gas asli, projek paip, dan lain -lain. |
Kelas 150 lb

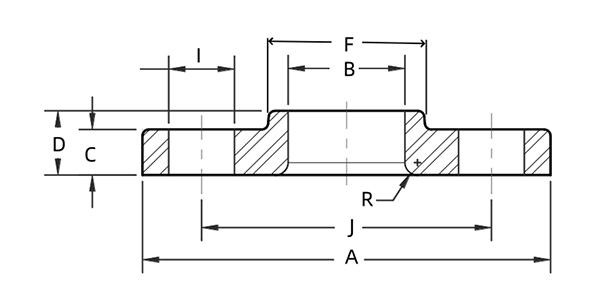

| Nomdalamal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| dalam | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekepdalamg |
| ½ | 21.30 | 88.90 | 22.90 | 11.20 | 15.70 | 3.00 | 30.20 | 4 | 15.70 | 60.45 | 0.38 |
| ¾ | 26.70 | 98.60 | 28.20 | 12.70 | 15.70 | 3.00 | 38.10 | 4 | 15.70 | 69.85 | 0.55 |
| 1 | 33.40 | 108.00 | 35.10 | 14.20 | 17.50 | 3.00 | 49.30 | 4 | 15.70 | 79.25 | 0.76 |
| 1 ¼ | 42.20 | 117.30 | 43.70 | 15.70 | 20.60 | 4.80 | 58.70 | 4 | 15.70 | 88.90 | 1.01 |
| 1 ½ | 48.30 | 127.00 | 50.00 | 17.50 | 22.40 | 6.40 | 65.00 | 4 | 15.70 | 98.60 | 1.30 |
| 2 | 60.30 | 152.40 | 62.50 | 19.10 | 25.40 | 7.90 | 77.70 | 4 | 19.10 | 120.70 | 2.03 |
| 2 ½ | 73.00 | 177.80 | 75.40 | 22.40 | 28.40 | 7.90 | 90.40 | 4 | 19.10 | 139.70 | 3.25 |
| 3 | 88.90 | 190.50 | 91.40 | 23.90 | 30.20 | 9.70 | 108.00 | 4 | 19.10 | 152.40 | 3.81 |
| 3 ½ | 101.60 | 215.90 | 104.10 | 23.90 | 31.75 | 9.70 | 122.20 | 8 | 19.10 | 177.80 | 4.76 |
| 4 | 114.30 | 228.60 | 116.80 | 23.90 | 33.30 | 11.20 | 134.90 | 8 | 19.10 | 190.50 | 5.25 |
| 5 | 141.30 | 254.00 | 114.50 | 23.90 | 36.60 | 11.20 | 163.60 | 8 | 22.40 | 215.90 | 6.02 |
| 6 | 168.30 | 279.40 | 171.50 | 25.40 | 39.60 | 12.70 | 192.00 | 8 | 22.40 | 241.30 | 7.40 |
| 8 | 219.10 | 342.90 | 222.30 | 28.40 | 44.50 | 12.70 | 246.10 | 8 | 22.40 | 298.50 | 12.10 |
| 10 | 273.00 | 406.40 | 277.40 | 30.20 | 49.30 | 12.70 | 304.80 | 12 | 25.40 | 362.00 | 16.40 |
| 12 | 323.80 | 482.60 | 328.20 | 31.75 | 55.60 | 12.70 | 365.30 | 12 | 25.40 | 431.80 | 26.10 |
| 14 | 355.60 | 533.40 | 360.20 | 35.10 | 79.25 | 12.70 | 400.10 | 12 | 28.40 | 476.30 | 34.50 |
| 16 | 406.40 | 596.90 | 411.20 | 36.60 | 87.40 | 12.70 | 457.20 | 16 | 28.40 | 539.80 | 44.60 |
| 18 | 457.20 | 635.00 | 462.30 | 39.60 | 96.80 | 12.70 | 505.00 | 16 | 31.75 | 577.90 | 48.70 |
| 20 | 508.00 | 698.50 | 514.40 | 42.90 | 103.10 | 12.70 | 558.80 | 20 | 31.75 | 635.00 | 61.60 |
| 24 | 609.60 | 812.80 | 616.00 | 47.80 | 111.30 | 12.70 | 663.40 | 20 | 35.10 | 749.30 | 86.60 |
Kelas 300 lb
| Nomdalamal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| dalam | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekepdalamg |
| ½ | 21.30 | 95.20 | 22.90 | 14.20 | 22.30 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.62 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.70 | 4 | 19.00 | 82.50 | 1.10 |
| 1 | 33.40 | 123.90 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.00 | 88.90 | 1.33 |
| 1 ¼ | 42.20 | 133.30 | 43.70 | 19.00 | 26.90 | 4.80 | 63.50 | 4 | 19.00 | 98.50 | 1.65 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 20.60 | 30.20 | 6.40 | 69.85 | 4 | 22.30 | 114.30 | 2.44 |
| 2 | 60.30 | 165.10 | 62.50 | 22.30 | 33.20 | 7.90 | 84.00 | 8 | 19.10 | 127.00 | 2.83 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 25.40 | 38.10 | 7.90 | 100.00 | 8 | 22.30 | 149.30 | 4.25 |
| 3 | 88.90 | 209.50 | 91.40 | 28.40 | 42.90 | 9.70 | 117.30 | 8 | 22.30 | 168.10 | 5.78 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 30.20 | 44.40 | 9.70 | 133.30 | 8 | 22.30 | 184.10 | 7.27 |
| 4 | 114.30 | 254.00 | 116.80 | 31.70 | 47.70 | 11.20 | 146.00 | 8 | 22.30 | 200.10 | 9.55 |
| 5 | 141.30 | 279.40 | 114.50 | 35.00 | 50.80 | 11.20 | 177.80 | 8 | 22.30 | 234.90 | 12.20 |
| 6 | 168.30 | 317.50 | 171.50 | 36.50 | 52.30 | 12.70 | 206.20 | 12 | 22.30 | 267.70 | 15.50 |
| 8 | 219.10 | 381.00 | 222.30 | 41.10 | 61.90 | 12.70 | 260.30 | 12 | 25.40 | 330.20 | 24.10 |
| 10 | 273.00 | 444.50 | 277.40 | 47.70 | 95.20 | 12.70 | 320.50 | 16 | 28.40 | 387.30 | 34.40 |
| 12 | 323.80 | 520.70 | 328.20 | 50.80 | 101.60 | 12.70 | 374.60 | 16 | 31.70 | 450.80 | 50.40 |
| 14 | 355.60 | 584.20 | 360.20 | 53.80 | 111.20 | 12.70 | 425.40 | 20 | 31.70 | 514.3 | 70.90 |
| 16 | 406.40 | 647.70 | 411.20 | 57.15 | 120.60 | 12.70 | 482.60 | 20 | 35.00 | 571.50 | 89.50 |
| 18 | 457.20 | 711.20 | 462.30 | 60.45 | 130.00 | 12.70 | 533.40 | 24 | 35.00 | 628.60 | 111.00 |
| 20 | 508.00 | 774.70 | 514.40 | 63.50 | 139.70 | 12.70 | 587.20 | 24 | 35.00 | 685.80 | 137.00 |
| 24 | 609.60 | 914.40 | 616.00 | 69.80 | 152.40 | 12.70 | 701.50 | 24 | 41.10 | 812.80 | 204.00 |
Kelas 400 lb
| Nomdalamal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekeping |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.40 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 254.00 | 116.80 | 35.10 | 50.80 | 11.20 | 146.10 | 8 | 25.40 | 200.20 | 10.90 |
| 5 | 141.30 | 279.40 | 114.50 | 38.10 | 53.80 | 11.20 | 177.80 | 8 | 25.40 | 235.00 | 13.70 |
| 6 | 168.30 | 317.50 | 171.50 | 41.10 | 57.15 | 12.70 | 206.20 | 12 | 25.40 | 269.70 | 18.00 |
| 8 | 219.10 | 381.00 | 222.30 | 47.80 | 68.30 | 12.70 | 260.40 | 12 | 28.40 | 330.20 | 28.30 |
| 10 | 273.00 | 445.00 | 277.40 | 53.80 | 101.60 | 12.70 | 320.50 | 16 | 31.75 | 387.40 | 38.80 |
| 12 | 323.80 | 520.70 | 328.20 | 57.15 | 108.00 | 12.70 | 374.70 | 16 | 35.10 | 450.90 | 56.60 |
| 14 | 355.60 | 584.20 | 360.2 | 60.45 | 117.30 | 12.70 | 425.50 | 20 | 35.10 | 514.40 | 78.60 |
| 16 | 406.40 | 647.70 | 411.20 | 63.50 | 127.00 | 12.70 | 482.60 | 20 | 38.10 | 571.50 | 100.00 |
| 18 | 457.20 | 711.20 | 462.30 | 66.55 | 136.70 | 12.70 | 533.40 | 24 | 38.10 | 628.70 | 122.00 |
| 20 | 508.00 | 774.70 | 514.40 | 69.85 | 146.10 | 12.70 | 587.20 | 24 | 41.10 | 685.80 | 145.00 |
| 24 | 609.60 | 914.40 | 616.00 | 76.20 | 158.80 | 12.70 | 701.50 | 24 | 47.80 | 812.80 | 217.00 |
Kelas 600 lb
| Nominal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekeping |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 273.10 | 116.80 | 38.10 | 53.80 | 11.20 | 152.40 | 8 | 25.40 | 215.9 | 14.40 |
| 5 | 141.30 | 330.20 | 114.50 | 44.50 | 60.45 | 11.20 | 189.00 | 8 | 28.40 | 266.70 | 24.30 |
| 6 | 168.30 | 355.60 | 171.50 | 47.80 | 66.55 | 12.70 | 222.30 | 12 | 28.40 | 292.10 | 28.50 |
| 8 | 219.10 | 419.10 | 222.30 | 55.60 | 76.20 | 12.70 | 273.10 | 12 | 31.75 | 349.30 | 43.10 |
| 10 | 273.00 | 508.00 | 277.40 | 63.50 | 111.30 | 12.70 | 342.90 | 16 | 35.10 | 431.80 | 70.50 |
| 12 | 323.80 | 558.80 | 328.20 | 66.55 | 117.30 | 12.70 | 400.10 | 20 | 35.10 | 489.00 | 86.10 |
| 14 | 355.60 | 603.30 | 360.20 | 69.85 | 127.00 | 12.70 | 431.80 | 20 | 38.10 | 527.10 | 100.00 |
| 16 | 406.40 | 685.80 | 411.20 | 76.20 | 139.70 | 12.70 | 495.30 | 20 | 41.10 | 603.30 | 145.00 |
| 18 | 457.20 | 743.00 | 462.30 | 82.60 | 152.40 | 12.70 | 546.10 | 20 | 44.50 | 654.10 | 177.00 |
| 20 | 508.00 | 812.80 | 514.40 | 88.90 | 165.10 | 12.70 | 609.60 | 24 | 44.50 | 723.90 | 225.00 |
| 24 | 609.60 | 939.80 | 616.00 | 101.60 | 184.20 | 12.70 | 717.60 | 24 | 50.80 | 838.20 | 318.00 |
Kelas 900 lb
| Nominal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekeping |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 241.30 | 91.40 | 38.10 | 53.80 | 9.70 | 127.00 | 8 | 25.40 | 190.50 | 11.30 |
| 4 | 114.30 | 292.10 | 116.80 | 44.40 | 69.85 | 11.20 | 158.70 | 8 | 31.70 | 234.90 | 19.20 |
| 5 | 141.30 | 349.20 | 114.50 | 50.80 | 79.25 | 11.20 | 190.50 | 8 | 35.00 | 279.40 | 31.20 |
| 6 | 168.30 | 381.00 | 171.50 | 55.60 | 85.80 | 12.70 | 234.90 | 12 | 31.70 | 317.50 | 40.50 |
| 8 | 219.10 | 469.90 | 222.30 | 63.50 | 114.30 | 12.70 | 298.40 | 12 | 38.10 | 393.70 | 71.50 |
| 10 | 273.00 | 546.10 | 277.40 | 69.85 | 127.00 | 12.70 | 368.30 | 16 | 38.10 | 469.90 | 104.00 |
| 12 | 323.80 | 609.60 | 328.20 | 79.25 | 142.70 | 12.70 | 419.10 | 20 | 38.10 | 533.40 | 139.00 |
| 14 | 355.60 | 641.30 | 360.20 | 85.80 | 155.40 | 12.70 | 450.80 | 20 | 41.10 | 558.80 | 161.00 |
| 16 | 406.40 | 704.80 | 411.20 | 88.90 | 165.10 | 12.70 | 508.00 | 20 | 44.40 | 615.90 | 194.00 |
| 18 | 457.20 | 787.40 | 462.30 | 101.60 | 190.50 | 12.70 | 565.10 | 20 | 50.80 | 685.80 | 267.00 |
| 20 | 508.00 | 857.20 | 514.40 | 107.90 | 209.50 | 12.70 | 622.30 | 20 | 53.80 | 749.30 | 334.00 |
| 24 | 609.60 | 1041.40 | 616.00 | 139.70 | 266.70 | 12.70 | 749.30 | 20 | 66.55 | 901.70 | 618.00 |
Kelas 1500 lb
| Nominal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekeping |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 266.70 | 91.40 | 47.70 | 73.15 | 9.70 | 133.30 | 8 | 31.70 | 203.2 | 17.80 |
| 4 | 114.30 | 311.10 | 116.80 | 53.80 | 90.40 | 11.20 | 162.00 | 8 | 35.00 | 241.30 | 27.50 |
| 5 | 141.30 | 374.60 | 114.50 | 73.15 | 104.60 | 11.20 | 196.80 | 8 | 41.10 | 292.10 | 51.50 |
| 6 | 168.30 | 399.70 | 171.50 | 82.50 | 119.10 | 12.70 | 228.60 | 12 | 38.10 | 317.50 | 62.00 |
| 8 | 219.10 | 482.6 | 222.30 | 91.90 | 142.70 | 12.70 | 292.10 | 12 | 44.40 | 393.70 | 105.00 |
| 10 | 273.00 | 584.20 | 277.40 | 107.90 | 177.80 | 12.70 | 368.30 | 12 | 50.80 | 482.60 | 179.00 |
| 12 | 323.80 | 673.10 | 328.20 | 123.90 | 218.90 | 12.70 | 450.80 | 16 | 53.80 | 571.50 | 269.00 |
| 14 | 355.60 | 749.30 | 360.20 | 133.30 | 241.30 | 12.70 | 495.30 | 16 | 60.45 | 635.00 | 365.00 |
| 16 | 406.40 | 825.50 | 411.20 | 146.00 | 260.30 | 12.70 | 552.40 | 16 | 66.55 | 704.80 | 459.00 |
| 18 | 457.20 | 914.40 | 462.30 | 162.00 | 276.30 | 12.70 | 596.90 | 16 | 73.15 | 774.70 | 598.00 |
| 20 | 508.00 | 984.20 | 514.40 | 177.80 | 292.10 | 12.70 | 641.30 | 16 | 79.25 | 831.80 | 712.00 |
| 24 | 609.60 | 1168.40 | 616.00 | 203.20 | 330.20 | 12.70 | 726.00 | 16 | 91.90 | 990.60 | 1090.00 |
Kelas 2500 lb
| Nominal Saiz paip | Di luar Diameter | Keseluruhan Diameter | Di dalam Diameter | Bebibir Ketebalan | Keseluruhan Panjang | Pangkuan Jejari | Hab Diameter | Nombor lubang | Lubang bolt Diameter | Diameter bulatan lubang | Berat |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | Saya (mm) | J (mm) | kg/ sekeping |
| ½ | 21.30 | 133.40 | 22.90 | 30.20 | 39.60 | 3.00 | 42.90 | 4 | 22.40 | 88.90 | 2.92 |
| ¾ | 26.70 | 139.70 | 28.20 | 31.75 | 42.90 | 3.00 | 50.80 | 4 | 22.40 | 95.30 | 3.40 |
| 1 | 33.40 | 158.80 | 35.10 | 35.10 | 47.80 | 3.00 | 57.15 | 4 | 25.40 | 108.00 | 4.77 |
| 1 ¼ | 42.20 | 184.20 | 43.70 | 38.10 | 52.30 | 4.80 | 73.15 | 4 | 28.40 | 130.00 | 7.08 |
| 1 ½ | 48.30 | 203.20 | 50.00 | 44.50 | 60.45 | 6.40 | 79.25 | 4 | 31.75 | 146.10 | 9.93 |
| 2 | 60.30 | 235.00 | 62.50 | 50.80 | 69.85 | 7.90 | 95.30 | 8 | 28.40 | 171.50 | 14.70 |
| 2 ½ | 73.00 | 266.70 | 75.40 | 57.15 | 79.25 | 7.90 | 114.30 | 8 | 31.75 | 196.90 | 21.30 |
| 3 | 88.90 | 304.80 | 91.40 | 66.55 | 91.90 | 9.70 | 133.40 | 8 | 35.10 | 228.60 | 32.30 |
| 4 | 114.30 | 355.60 | 116.80 | 76.20 | 108.00 | 11.20 | 165.10 | 8 | 41.10 | 273.10 | 52.50 |
| 5 | 141.30 | 419.10 | 114.50 | 91.90 | 130.00 | 11.20 | 203.20 | 8 | 47.80 | 323.90 | 82.60 |
| 6 | 168.30 | 482.60 | 171.50 | 108.00 | 152.40 | 12.70 | 235.00 | 8 | 53.80 | 368.30 | 127.00 |
| 8 | 219.10 | 552.50 | 222.30 | 127.00 | 177.80 | 12.70 | 304.80 | 12 | 53.80 | 438.20 | 186.00 |
| 10 | 273.00 | 367.10 | 277.40 | 165.10 | 228.60 | 12.70 | 374.70 | 12 | 66.55 | 539.80 | 352.00 |
| 12 | 323.80 | 762.00 | 328.20 | 184.20 | 254.00 | 12.70 | 441.50 | 12 | 73.15 | 619.30 | 501.00 |
Ditubuhkan pada tahun 2007 dan berpindah ke Zon Pembangunan Ekonomi Longyou, Wilayah Zhejiang, pada tahun 2022. Ia meliputi kawasan seluas 130,000 meter persegi, lebih daripada 30 barisan pengeluaran, 300 pekerja, 20 orang R & D, 30 orang pemeriksaan dan pengeluaran tahunan sebanyak 50,000 tan.
Ia telah meluluskan sistem pengurusan kualiti ISO9001: 2008, PED 97/23/EC EU Tekanan Peralatan Peralatan Peralatan, Persijilan Pembuatan Peralatan Khas (Tekanan) TS, Sistem Pengurusan ABOS, British Register of Shipping (LR), Deutsche Veritas (GL), Biro Veritas Society (BV), Det Norske Veritas (DNV), dan Persijilan Kilang Daftar Korea (KR) Korea.
Produk utama termasuk paip keluli tahan karat, kelengkapan paip, bebibir, injap, dan lain -lain, yang digunakan secara meluas dalam petroleum, industri kimia, industri nuklear, peleburan, pembinaan kapal, farmaseutikal, makanan, pemeliharaan air, kuasa elektrik, tenaga baru, peralatan mekanikal, dan ladang lain. Syarikat itu mematuhi prinsip korporat "Kualiti untuk Survival, Reputation for Development" dan sepenuh hati melayani setiap pelanggan untuk mewujudkan keadaan menang-menang.
Keluli ialah bahan kritikal dalam pelbagai industri, dengan jenis yang berbeza memenuhi aplikasi tertentu. Antaranya, Keluli Ringan dan Keluli Karbon adalah dua daripada bentuk yang paling biasa di...
Lihat lebih lanjutKami gembira untuk merenungkan penyertaan kami yang berjaya dalam Ekspo Industri Petroleum dan Kimia 2025, yang diadakan dari 4-6 September di Pusat Konvensyen dan Pameran Antarabangsa Xinjiang. Ge...
Lihat lebih lanjutPengenalan Tiub kapal tekanan keluli tahan karat adalah komponen kritikal dalam industri di mana cecair atau gas mesti disimpan, diangkut, atau diproses di bawah tekanan tinggi. Dari tumbuhan ki...
Lihat lebih lanjutKami tidak akan berkongsi alamat e -mel anda dan anda
Boleh memilih pada bila -bila masa, kami berjanji.
Mengkhususkan diri dalam pengeluaran tahan karat
Steel Pipe
No.188 Binkang Road, Xixing Street, Daerah Binjiang, Hangzhou City, Wilayah Zhejiang, China
+86 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Cawangan Hangzhou Rights Reserved.
